Precision-Engineered Glazing Systems for Commercial Architecture

Explore our range of advanced commercial glazing solutions — from aluminium curtain walling and fire-rated façades to high-performance entrance doors and roof glazing systems. Engineered for modern architectural demands, our systems deliver exceptional thermal insulation, safety compliance, and elegant aesthetics for offices, retail units, public buildings, and more. All products are backed by industry certifications and tailored for seamless integration across your project’s envelope.

Aluminium windows series S2es-w

Extend-a-Room Base System

A fast, clean and cost-effective alternative to traditional foundations — the Extend-a-Room Base System offers modular steel base construction for extensions and conservatories. Designed for rapid installation with minimal disruption, even on uneven or restricted-access sites.

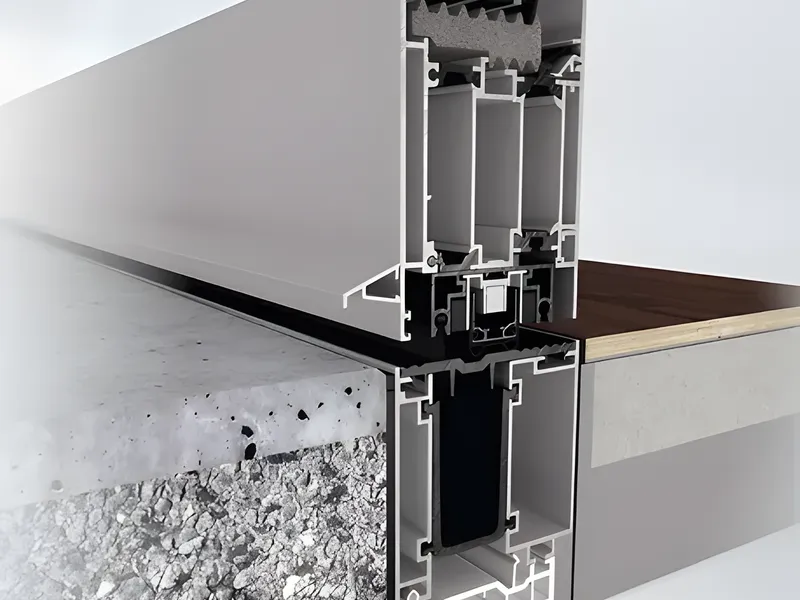

Schüco Door System AD UP 75

A robust aluminium door system engineered for high-traffic commercial use, combining excellent thermal insulation with sleek aesthetics and compatibility with access control solutions.

View Details

Uf value of frame (≥)	1.4 W/(m²·K)	Max. height	3000 mm
Max. width	1400 mm	Max. glass/panel thickness	53 mm
Max. vent weight	200 kg	Area of application	Residential projects, Commercial projects
Surface finishes	RAL, Anodised	Air permeability	Class 4
Watertightness	E 750	Wind load resistance	Class C3 / B3
Burglar resistance	Up to RC3	Impact resistance	Class 1
Min.-max. height	0…3000 mm	Min.-max. width	0…1400 mm
Min. face width	151 mm	Min.-max. glass/panel thickness	13…53 mm
Barrier-free (≤) 20 mm	Yes	Zero-level threshold	Yes
Thick door leaf	75 mm	Type of design	Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in façade
Vent option	All around, Sill rail profile, Adjustable sill, Flush-fitted, Inward opening, Outward-opening, Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides	Infill type	Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door threshold	Aluminium, Automatic door gasket, Flat door threshold, Easy-access door threshold	Special applications	Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
Fitting material	Aluminium, Stainless steel	Concealed fittings system	Yes
Neutral-colour fitting	Yes	Fittings installation	Surface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikes	Yes	With panic function	Yes
Finger-trap protection	Yes	Opening type	Side-hung, Inward and outward, Single and double-vent
DIN direction	DIN LH / RH	Door swing	Flush-fitted
Mechanical strength	Class 3	Proof of durability	Class 7, Class 8
Behaviour between different climates	Class 2(d),2(e)	Max. sound reduction index Rwp	42 dB(A)
Top / bottom door closers	Yes	Door closer type	Top closers
Certificates	RAL quality mark, cradle2cradle SILVER	CE marking	Yes

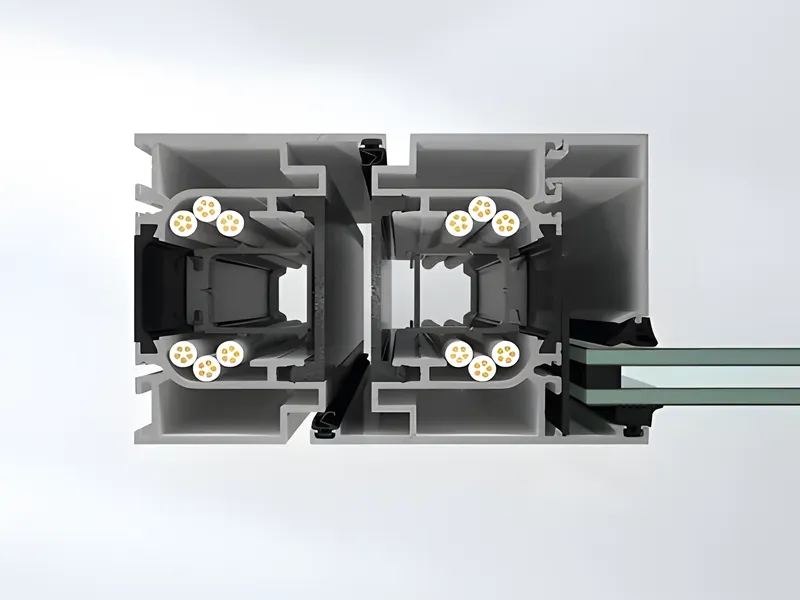

Schüco Door System FireStop ADS 90 FR30

An elegant aluminium fire-rated door system offering 30 minutes of certified protection, with minimal sightlines, integrated hardware, and flexible design options for modern interiors.

View Details

Min. face width	127 mm	Max. height	3284 mm
Max. width	3390 mm	Max. weight	350 kg
Fire protection	F30, T30, EI30	Smoke protection	SA, S200, RS1, RS2
Burglar resistance	Up to RC 2	Basic protection against vandalism	No
Suitable for safety barrier loading	Yes	Max. sound reduction index Rwp	43 dB(A)
Min.-max. width	598…3390 mm	Min.-max. height	1732…3284 mm
Min. clear opening dimension (w x h)	456 x 1648 mm	Max. clear opening dimension (w x h)	3022 x 3100 mm
Max. glass/panel thickness	53 mm	Max. glass size (w x h)	1500 x 3000 mm
Area of application	Internal use, Commercial projects	Type of design	Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in glazing
Use	Door, Fixed glazing	Special applications	Anti-finger-trap door, Flush-fitted
Emergency exit door	Yes	Concealed fittings system	Yes
Direction of opening	Side-hung, Inward and outward, Single and double-vent	Mechanical strength	DIN EN 1192, Class 4
Proof of durability	200,000 cycles in accordance with DIN EN 12400, 1,000,000 cycles in accordance with DIN EN 12400	Security system	Yes
Certificates	cradle2cradle SILVER	Standards	DIN 4102, DIN EN 1192, DIN EN 1627, DIN 18095, EN 1634, EN 1364, EN 12210, EN 12208, EN 12207, 200,000 cycles in accordance with DIN EN 12400, 1,000,000 cycles in accordance with DIN EN 12400, EN 13501-2, DIN EN 14351-1, EN 16034

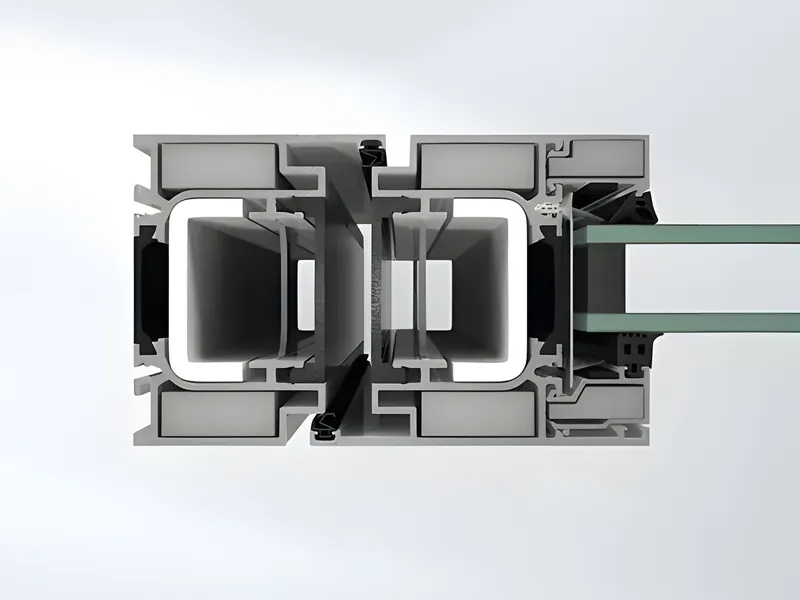

Schüco Door System FireStop ADS 90 FR90

Engineered for 90-minute fire resistance, this aluminium door system delivers high performance, concealed components, and seamless adaptability for safety-critical environments.

View Details

Min. face width	145 mm	Max. height	2884 mm
Max. width	3190 mm	Max. weight	350 kg
Fire protection	F90, T90, EI90	Smoke protection	SA, S200, RS1, RS2
Burglar resistance	Up to RC 2	Basic protection against vandalism	No
Suitable for safety barrier loading	Yes	Max. sound reduction index Rwp	42 dB(A)
Min. clear opening dimension (w x h)	456 x 1648 mm	Max. clear opening dimension (w x h)	2822 x 2700 mm
Max. glass/panel thickness	59 mm	Max. glass size (w x h)	1500 x 3000 mm
Area of application	Internal use, Residential projects, Commercial projects, Doors, Healthcare, Education	Type of design	Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in glazing
Use	Door, Fixed glazing	Special applications	Anti-finger-trap door, Flush-fitted
Emergency exit door	Yes	Concealed fittings system	Yes
Direction of opening	Side-hung, Inward and outward, Single and double-vent	Mechanical strength	DIN EN 1192, Class 4
Proof of durability	200,000 cycles in accordance with DIN EN 12400	Uf value of frame (≥)	2.4 W/(m²·K)
Security system	Yes	Certificates	cradle2cradle BRONZE
Standards	DIN 4102, DIN EN 1192, DIN EN 1627, DIN 18095, EN 1634, EN 1364, EN 12210, EN 12208, EN 12207, 200,000 cycles in accordance with DIN EN 12400, EN 13501-2, DIN EN 1191, DIN EN 14351-1, EN 16034

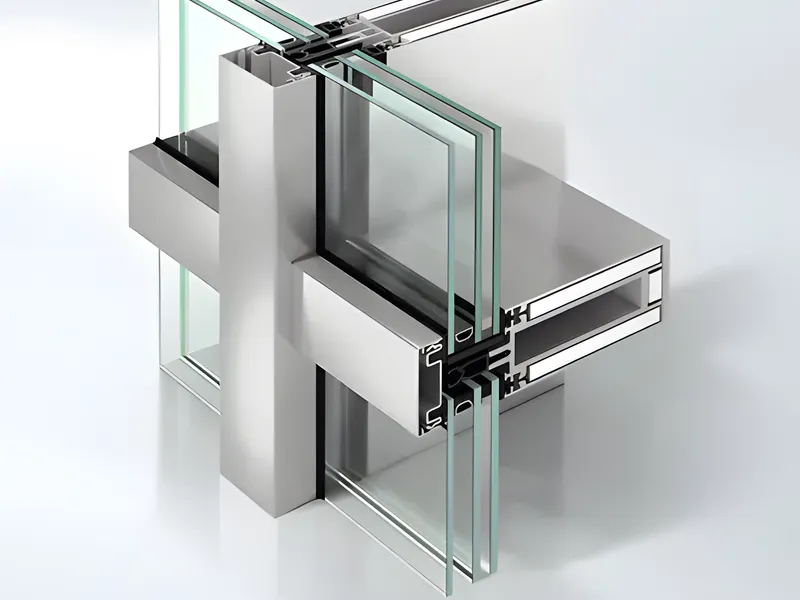

Schüco Façade System FW 50+ BF

A fire-rated curtain wall system that visually matches standard façades while offering 30 minutes of fire protection — ideal for continuous designs across commercial exteriors and skylights.

View Details

Min. face width	50 mm	Min.-max. glass/panel thickness	13…52 mm
Max. weight	288 kg	Fire protection	F30, G30, EI30, EW30
Burglar resistance	Up to RC 2	Air permeability	AE
Watertightness	RE 1200	Max. glass/panel thickness	52 mm
Area of application	External use	Use	Façade
Uf value of frame (≥)	1.1 W/(m²·K)	Security system	Yes
CE marking	Yes	Standards	DIN 4102, EN 1364, EN 13501-2, DIN EN 13830

Schüco Façade System FWS 35 PD

A Panorama Design curtain wall system featuring ultra-slim profiles and frameless glass corners for maximum transparency and uninterrupted views — ideal for high-end residential and commercial buildings.

View Details

Uf value of frame (≥)	1.4 W/(m²·K)	Min. face width	35 mm
Min.-max. system basic depth	65…150 mm	Max. glass/panel thickness	50 mm
Max. weight	400 kg	Surface finishes	Powder, Anodised, Paint
Air permeability	AE	Max. sound reduction index Rwp	51 dB(A)
Watertightness	RE 1200	Impact resistance	I5/E5
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Min. system basic depth	65 mm	Max. system basic depth	150 mm
Min. basic depth of mullion	65 mm	Max. basic depth of mullion	125 mm
Min.-max. basic depth of mullion	65…125 mm	Max. unit weight	400 kg
Min.-max. face width	35 mm	Face width of pressure plate / cover cap profile	35 mm
Face width, outside	35 mm	Face width, inside	35 mm
Face width of mullion	35 mm	Face width of frame	35 mm
Face width of transom	35 mm	Min. glass/panel thickness	4 mm
Min.-max. glass/panel thickness	4…50 mm	Max. glass/infill weight	400 kg
Installation angle	85-105 °	Polygon façade angle	90 °
Drainage	Yes	Drainage levels	3
Earthquake protection	Yes	Wind load resistance	2.0/3.0 [kN/m²]
Sun shading attachment	Yes	Spandrel safety barriers	Surface-mounted, Façade-mounted
Blast resistance	No	Certificates	Passive house certificate
CE marking	Yes	Passive house compliant	Yes
Passive house class	phA	Recyclable	Yes
Standards	DIN EN 1627, EN ISO 10077, DIN EN 13830, General building authority approval	CWCT certified	Yes
Building authority approval	Yes	European Technical Assessment	Yes
Tested all-glass corner	Yes

Schüco Façade System FWS 50

A versatile 50 mm curtain wall system offering thermal performance, integrated safety barriers, and seamless integration with Schüco windows and doors — perfect for commercial façades and skylights.

View Details

Uf value of frame (≥)	1.5 W/(m²·K)	Min. face width	50 mm
Min.-max. system basic depth	6…255 mm	Max. glass/panel thickness	62 mm
Max. weight	1080 kg	Surface finishes	Powder, Anodised, Paint
Air permeability	AE	Max. sound reduction index Rwp	48 dB(A)
Watertightness	RE 1200	Impact resistance	I5/E5
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Bullet resistance	Up to FB 4	Min. system basic depth	6 mm
Max. system basic depth	255 mm	Min. basic depth of mullion	50 mm
Max. basic depth of mullion	250 mm	Min.-max. basic depth of mullion	50…250 mm
Max. unit weight	1080 kg	Min.-max. face width	50 mm
Face width of pressure plate / cover cap profile	50 mm	Face width, outside	50 mm
Face width, inside	50 mm	Face width of mullion	50 mm
Face width of frame	50 mm	Face width of transom	50 mm
Min. glass/panel thickness	4 mm	Min.-max. glass/panel thickness	4…62 mm
Max. glass/infill weight	1080 kg	Installation angle	1-105 °
Polygon façade angle	45 °	Skylight construction, min. vert. incline	2 °
Skylight construction, max. vert. incline	90 °	Skylight construction, min.-max. vert. incline	2…90 °
Skylight construction	Yes	Drainage	Yes
Drainage levels	3	DIN EN 62561 lightning protection	Yes
Earthquake protection	Yes	Wind load resistance	2.0/3.0 [kN/m²]
Sun shading attachment	Yes	Integrated sun shading	Yes
Spandrel safety barriers	Integrated, Surface-mounted, Façade-mounted	Profile-integrated spandrel safety barrier	Yes
Blast resistance	No	CE marking	Yes
Passive house compliant	Yes	Passive house class	phA
Recyclable	Yes	Standards	DIN EN 1627, EN ISO 10077, DIN EN 13830, General building authority approval
AAMA certified	Yes	CWCT certified	Yes
Building authority approval	Yes	European Technical Assessment	Yes

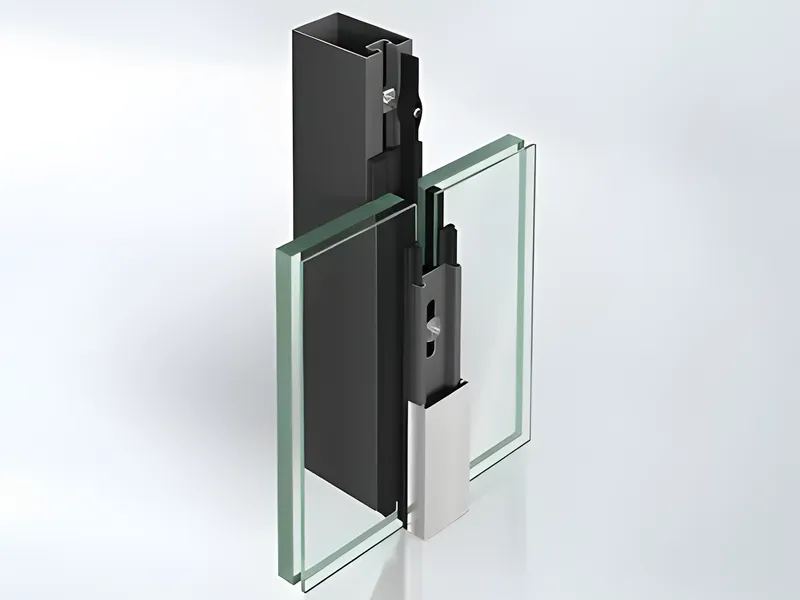

VISS Fire

A flexible steel fire façade system covering all resistance classes (EI30/60/90), offering large-scale glazing, slim sightlines, and seamless visual integration with standard VISS façades.

View Details

Min. face width	50 mm	Min.-max. glass/panel thickness	5…70 mm
Max. weight	1800 kg	Fire protection	F30, F90, G30, EI30, EI60, EI90, EW30, E30, EW60, G60
Basic protection against vandalism	No	Suitable for safety barrier loading	Yes
Air permeability	AE	Watertightness	RE 1200
Wind load resistance	2.0/3.0 [kN/m²]	Max. sound reduction index Rwp	47 dB(A)
Max. glass/panel thickness	70 mm	Area of application	Internal use, External use, Commercial projects, Façades, Healthcare, Education
Use	Façade, Fixed glazing	Impact resistance	Class 5
Uf value of frame (≥)	1.4 W/(m²·K)	Security system	Yes
Certificates	EPD	CE marking	Yes
Standards	DIN 4102, EN 13501-2, DIN EN 13830

VISS Fire EI30

Designed for EI30 performance, this steel façade system combines security and aesthetics with slim profiles, large glazing formats, and tested compatibility with RC2/RC3 burglar resistance.

View Details

Min. face width	50 mm	Min.-max. glass/panel thickness	15…70 mm
Max. weight	1800 kg	Fire protection	EI30
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Air permeability	AE	Watertightness	RE 1200
Wind load resistance	2.0/3.0 [kN/m²]	Max. glass/panel thickness	70 mm
Max. glass size (w x h)	2300 x 4600 mm	Area of application	External use, Commercial projects, Façades, Healthcare, Education
Use	Façade, Fixed glazing	Special applications	Floor plan, angled glazing
Impact resistance	Class 5	Uw value of window (≥)	0.96 W/(m²·K)
Security system	Yes	Certificates	EPD
CE marking	Yes	Standards	EN 13501-2, DIN EN 13830

VISS roof glazing

A steel roof system that enables expansive glass designs across various roof forms, combining excellent thermal performance with minimalist detailing and robust weather resistance.

View Details

Uf value of frame (≥)	0.64 W/(m²·K)	Min. face width	50 mm
Max. glass/panel thickness	70 mm	Max. weight	1800 kg
Surface finishes	Stainless steel, Powder, Paint	Air permeability	AE 750
Watertightness	RE 1200	Min. basic depth of mullion	25 mm
Max. basic depth of mullion	280 mm	Min.-max. basic depth of mullion	25…280 mm
Max. face width	60 mm	Min.-max. face width	50…60 mm
Min. glass/panel thickness	16 mm	Min.-max. glass/panel thickness	16…70 mm
Max. glass/infill weight	1800 kg	Installation angle	0-75 °
Skylight construction, min. vert. incline	10 °	Skylight construction, max. vert. incline	75 °
Skylight construction, min.-max. vert. incline	10…75 °	Skylight construction	Yes
Drainage	Yes	Drainage levels	3
Wind load resistance	2.0 [kN/m²]	Sun shading attachment	Yes
Certificates	EPD	CE marking	No
Passive house compliant	Yes	Passive house class	phA
Recyclable	Yes	Standards	EN ISO 10077
Building authority approval	Yes	Colour-independent	Yes
