Schüco

Fire-Rated, Blast-Proof & Acoustic Glazing Systems

As a trusted installer of Schüco’s advanced aluminium glazing solutions, Minimal Frame Projects offers fire-resistant doors, blast-proof glass façades, and acoustic pods tailored for safety, performance, and visual appeal. Built for both residential and commercial environments.

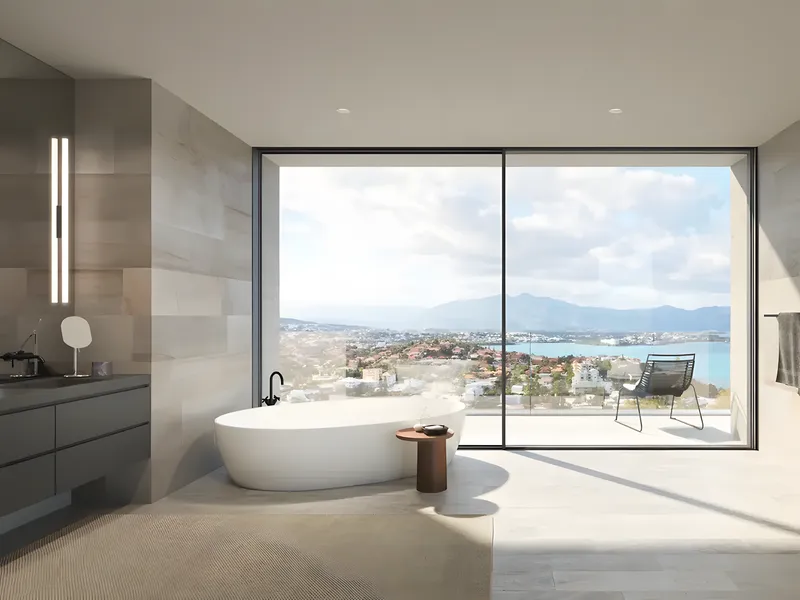

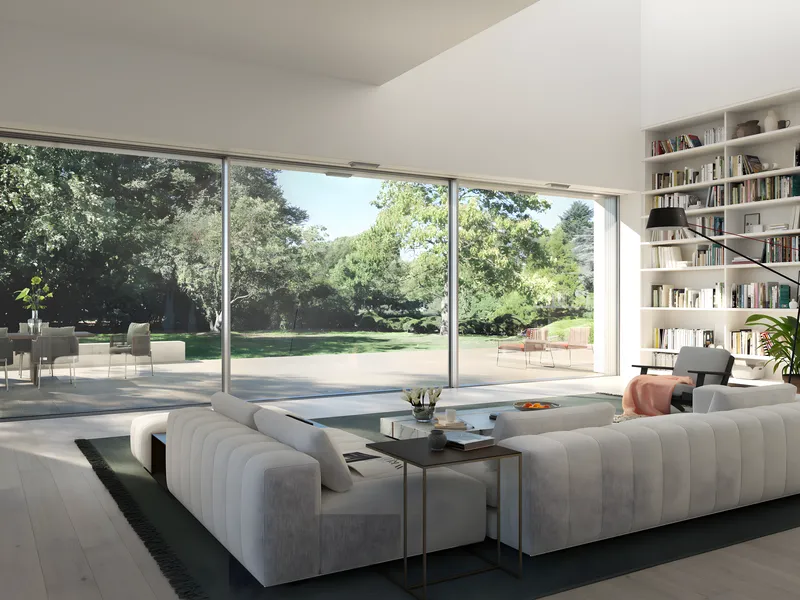

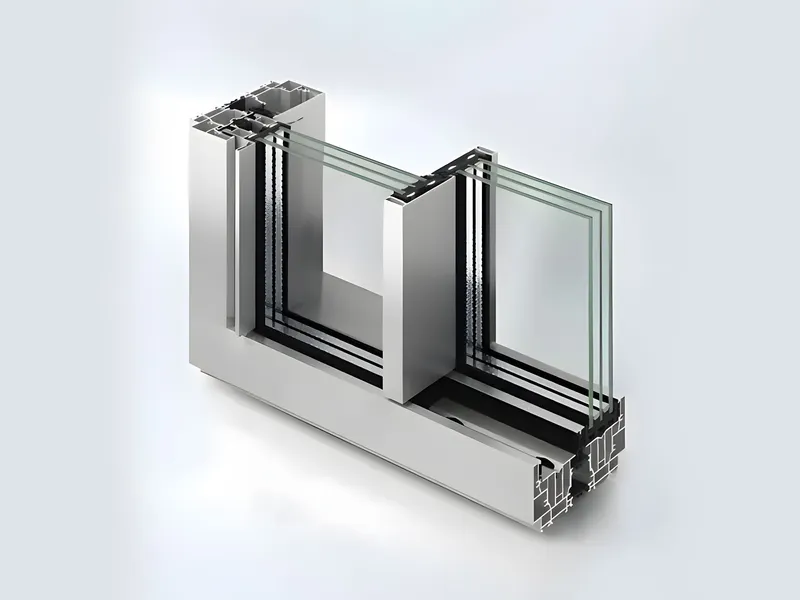

Schüco Panorama Design Sliding System AS PD 75.HI Design Line

The Schüco AS PD 75.HI Design Line combines ultra-slim sightlines, advanced thermal insulation, and flexible configuration options — including smart drive technology and integrated sun shading. With a sleek, modular design and vent weights up to 800 kg, it’s a powerful solution for premium residential and commercial applications.

View Details

Min. vent height	1000 mm	Max. vent height	3500 mm
Min.-max. vent height	1000…3500 mm	Min. vent width	1000 mm
Max. vent width	3500 mm	Min.-max. vent width	1000…3500 mm
Vent frame face width	0 mm	Min. face width of interlocking section	35 mm
Min. system basic depth	218 mm	Min.-max. system basic depth	218…218 mm
Uw value of window (≥)	0,84 W/(m²·K)	Watertightness	E 900
Burglar resistance	Up to RC 2	Operating type	electric, manual
Max. vent weight	800 kg	Min. face width	35 mm
Max. glass/panel thickness	60 mm	Total basic depth	218 mm
Width of vent frame	75 mm	Max. unit width	16300 mm
Max. unit height	3500 mm	Outer frame face width	0 mm
Min. face width of mullion	0 mm	Min.-max. face width of mullion	0…0 mm
Min. face width of meeting stile	35 mm	Min.-max. face width of meeting stile	35…35 mm
Min.-max. glass/panel thickness	40…60 mm	Area of application	Internal use, External use, Residential projects, Commercial projects, Doors, Façades, Healthcare, Education, Accommodation facilities
Meeting stile design	Yes	Number of vents	4
Fixed lights/identified vents	Yes	Number of tracks	Double track
Track material	Aluminium	Roller carriage material	Aluminium
Surface finishes	RAL, Powder, Anodised, Paint	Concealed lock	Yes
Concealed drive system	Yes	TipTronic	Yes
Electronic drive	Yes	Opening type	Type 2A, Type 2A/1, Type 2B, Type 2C, Type 2E, Type 2G/1, Type 2G
Air permeability	Class 4	Wind load resistance	Class B4/C2
Drainage levels	4	Schüco sun shading possible	Yes
CE marking	Yes	Cradle2Cradle	Yes

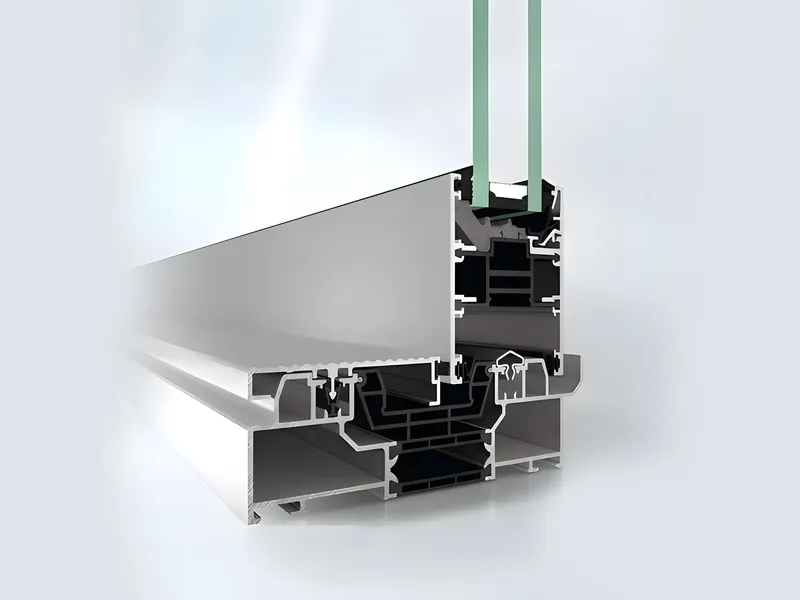

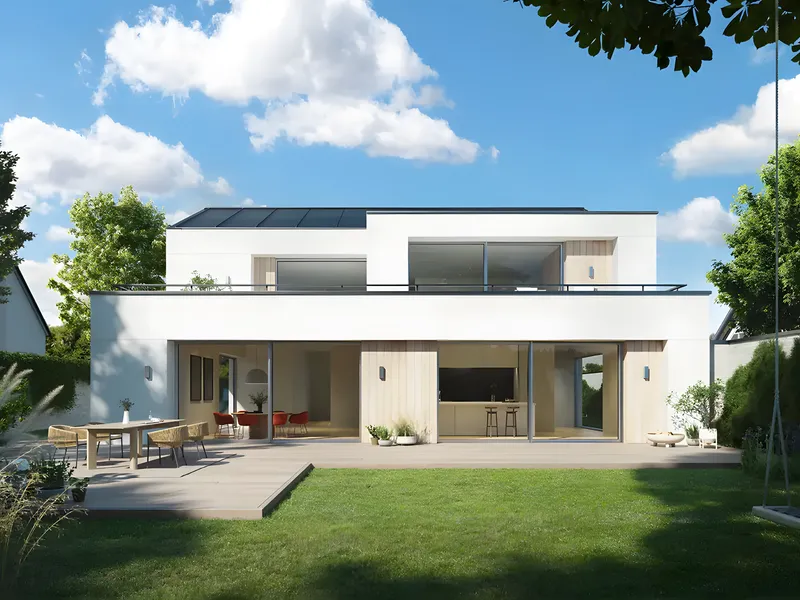

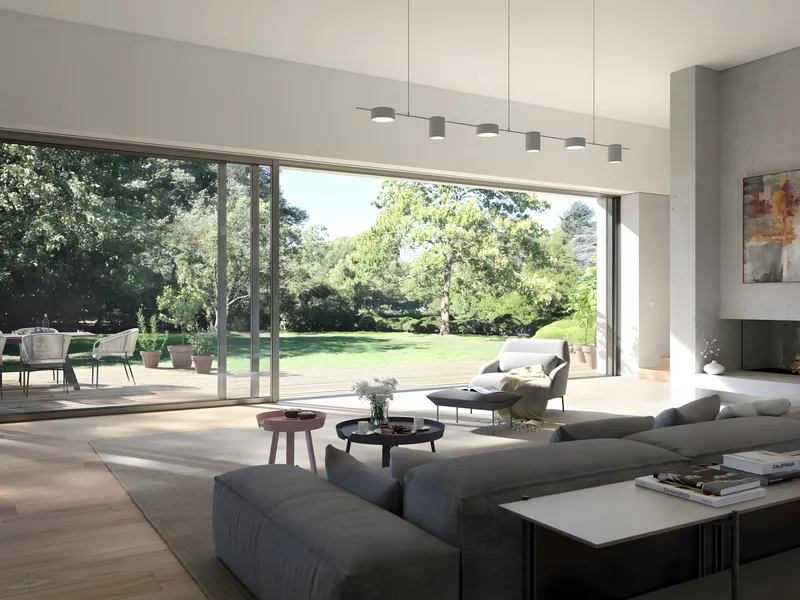

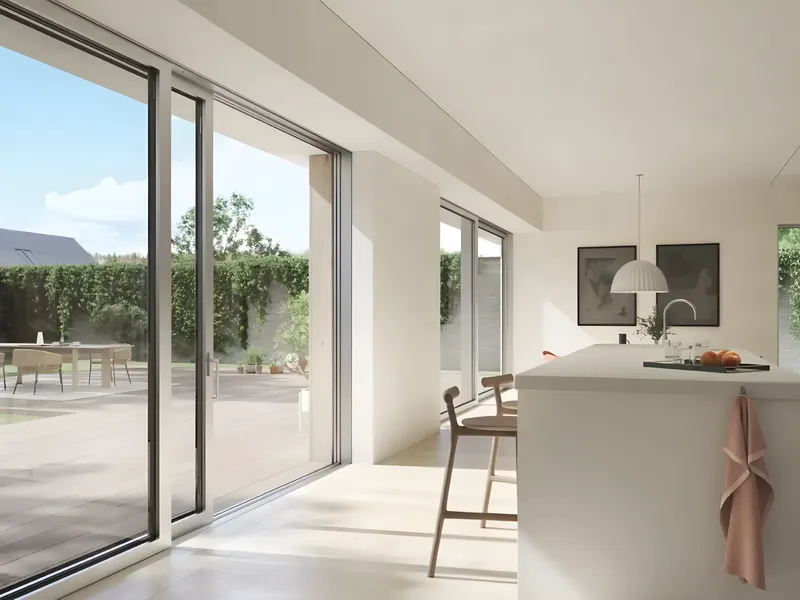

Schüco Sliding and Lift-and-Slide System ASE 60

The Schüco ASE 60 is a high-performance sliding and lift-and-slide system offering slim face widths, excellent thermal insulation, and customisable comfort features like SmartStop and SmartClose. With RC 2 security, low thresholds, and scalable configurations, it’s ideal for modern, accessible spaces.

View Details

Min. vent height	1334 mm	Max. vent height	3500 mm
Min.-max. vent height	1334…3500 mm	Min. vent width	630 mm
Max. vent width	3500 mm	Min.-max. vent width	630…3500 mm
Vent frame face width	82 mm	Min. face width of interlocking section	40 mm
Min. system basic depth	140 mm	Min.-max. system basic depth	140…232 mm
Uw value of window (≥)	1.1 W/(m²·K)	Max. sound reduction index Rwp	41 dB(A)
Watertightness	E 900	Burglar resistance	Up to RC 2
Operating type	manual	Max. vent weight	500 kg
Min. face width	40 mm	Max. glass/panel thickness	40 mm
Uf value of frame (≥)	1.8 W/(m²·K)	Width of vent frame	60 mm
Max. unit width	21000 mm	Max. unit height	3500 mm
Outer frame face width	0 mm	Min. face width of mullion	40 mm
Min.-max. face width of mullion	40…107 mm	Min. face width of meeting stile	172 mm
Min.-max. face width of meeting stile	172…192 mm	Min.-max. glass/panel thickness	24…40 mm
Threshold height	< 12,5 mm	Area of application	Internal use, External use, Residential projects, Commercial projects
Shear bond	Yes	Meeting stile design	Yes
Fixed lights/identified vents	Yes	Number of tracks	Single track, Double track, Triple track
Track material	Stainless steel	Surface finishes	Powder, Anodised, Paint
Concealed lock	Yes	Concealed drive system	Yes
Operating forces	Class 1	TipTronic	Yes
Electronic drive	Yes	Opening type	Type 1A, Type 1B, Type 1C, Type 1D, Type 2A, Type 2A/1, Type 2B, Type 2C, Type 2D, Type 2D/1, Type 2D/1 – 90° A, Type 2D/1 – 90° I, Type 3E, Type 3E/1, Type 3F, Type 1B.i 90° O, Type 1B.i 90° I
Proof of durability	Class 3	Air permeability	Class 4
Wind load resistance	C5/B5	Electronic monitoring	Yes
CE marking	Yes	Colour-independent	Yes

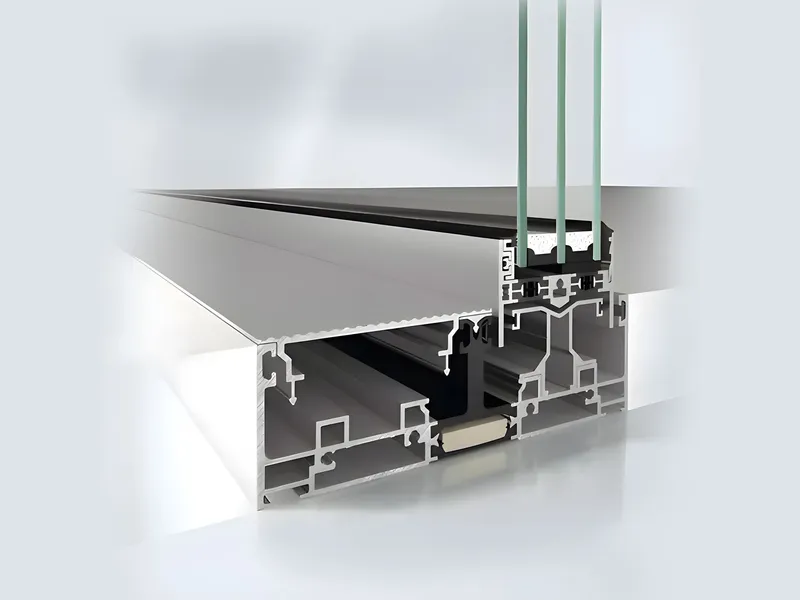

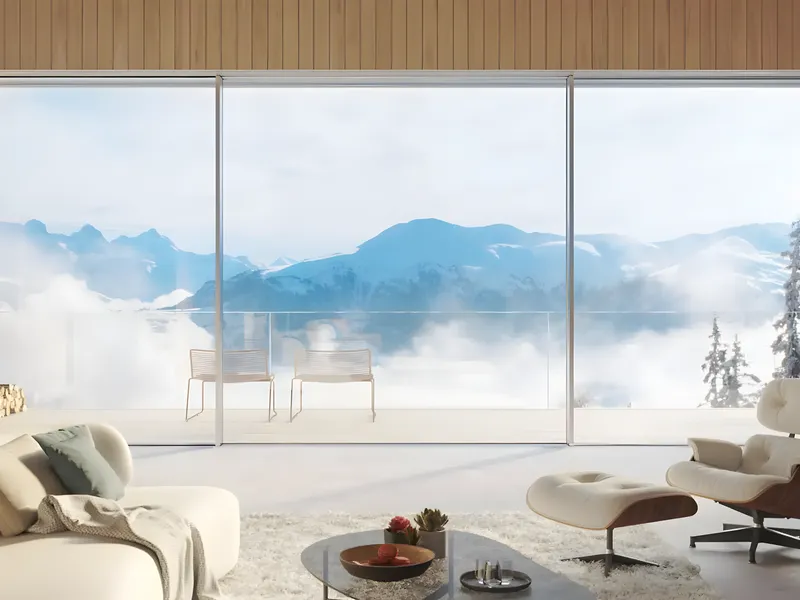

Schüco Sliding System ASE 67 PD

The Schüco ASE 67 PD (Panorama Design) sliding system offers ultra-slim profiles, seamless transitions, and award-winning minimalist aesthetics. Designed for maximum transparency and smooth operation, it’s ideal for contemporary residential and commercial projects seeking unobstructed views with advanced thermal performance.

View Details

Min. vent height	2000 mm	Max. vent height	3000 mm
Min.-max. vent height	2000…3000 mm	Min. vent width	1000 mm
Max. vent width	3200 mm	Min.-max. vent width	1000…3200 mm
Vent frame face width	0 mm	Min. face width of interlocking section	31 mm
Min. system basic depth	177 mm	Min.-max. system basic depth	177…267 mm
Uw value of window (≥)	1 W/(m²·K)	Max. sound reduction index Rwp	46 dB(A)
Watertightness	Class 9A	Burglar resistance	Up to RC 2
Operating type	manual	Max. vent weight	400 kg
Min. face width	31 mm	Max. glass/panel thickness	49 mm
Total basic depth	177 mm	Width of vent frame	67 mm
Max. unit width	19200 mm	Max. unit height	3000 mm
Outer frame face width	0 mm	Min. face width of mullion	31 mm
Min.-max. face width of mullion	31…31 mm	Min. face width of meeting stile	86 mm
Min.-max. face width of meeting stile	86…86 mm	Min.-max. glass/panel thickness	36…49 mm
Threshold height	< 12,5 mm	Area of application	Internal use, External use, Residential projects, Commercial projects
Shear bond	Yes	Meeting stile design	Yes
Number of vents	6	Fixed lights/identified vents	Yes
Number of tracks	Single track, Double track, Triple track	Track material	Aluminium
Surface finishes	Powder, Anodised, Paint	Concealed lock	Yes
Operating forces	Class 0	Opening type	Type 2A, Type 2A/1, Type 2B, Type 2C, Type 2D, Type 2D/1, Type 2D/1 – 90° A, Type 2D/1 – 90° I, Type 3E, Type 3E/1, Type 3F, Type 3F – 90° A, Type 3F – 90° I, Type 2E, Type 2B – 90° I, Type 2B – 90° A, Type 1A W, Type 1C 90° OW, Type 1C 90° IW, Type 1D-W, Type 1D 90° OW, Type 1D 90° IW, Type 2E/1 W, Type 2F W, Type 2F 90° OW, Type 2F 90° IW, Type 2C 90° O
Proof of durability	DIN EN 12400, Class 3	Air permeability	Class 4
Wind resistance deflection	Class C3	Wind load resistance	Class C3
Security glazing	Yes	CE marking	Yes
Colour-independent	Yes

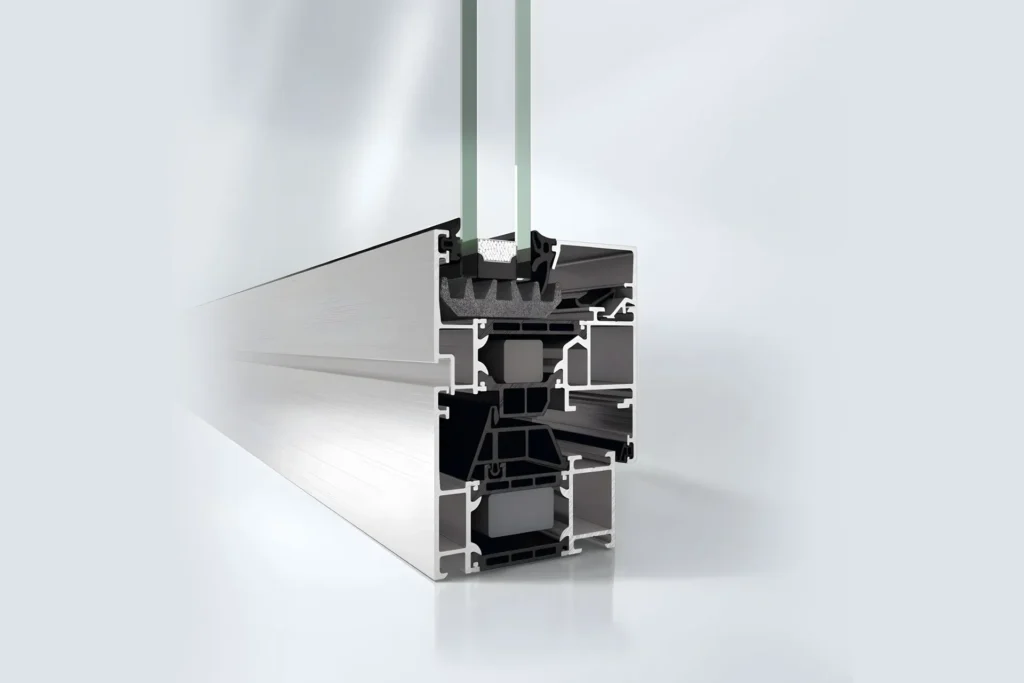

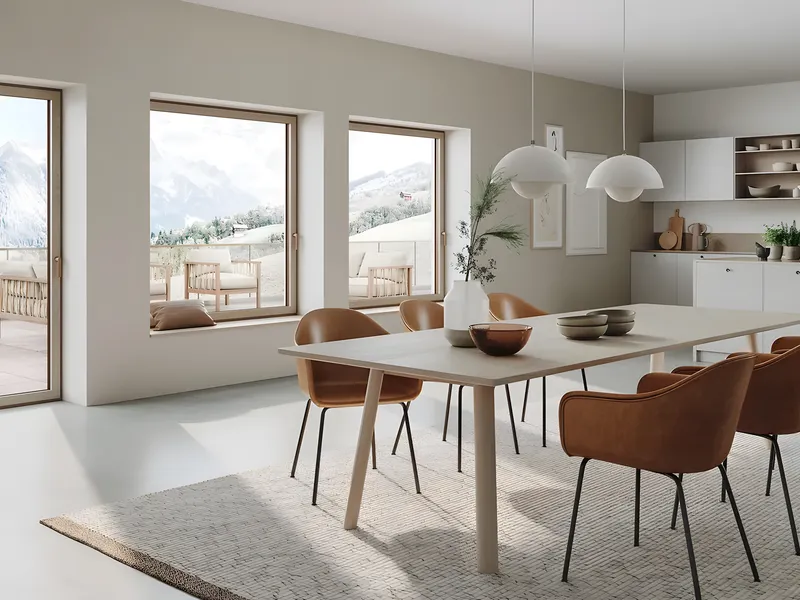

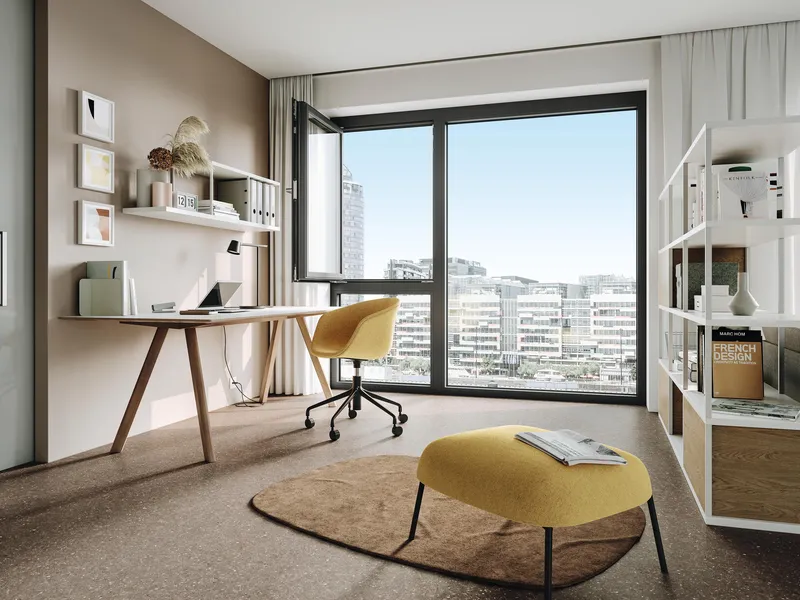

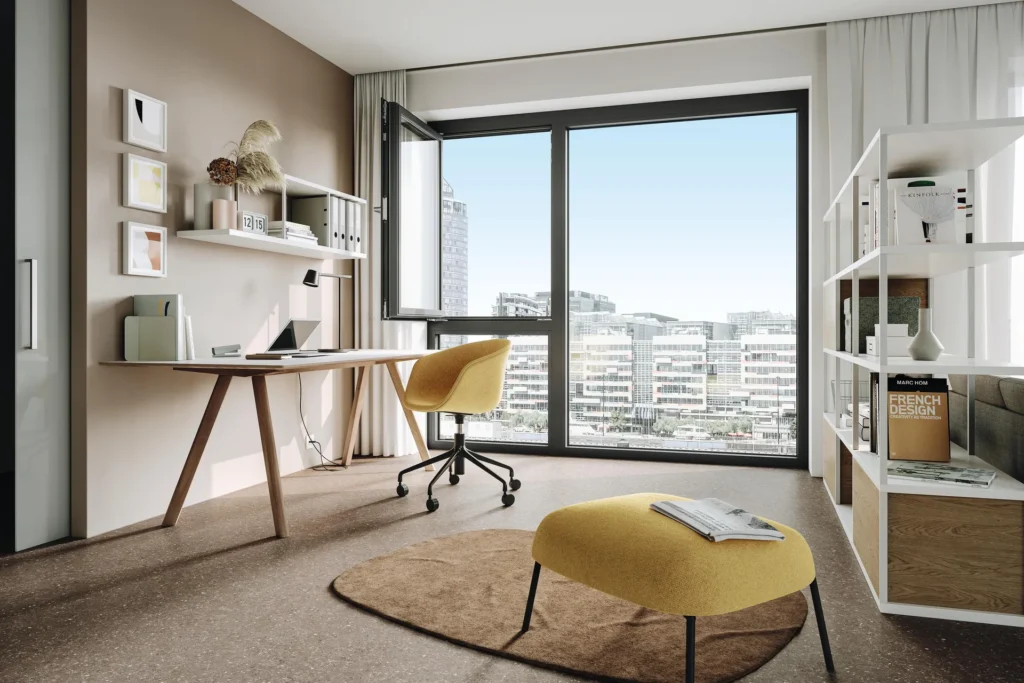

Schüco Window System AWS 70.HI

The Schüco AWS 70.HI window system delivers outstanding thermal insulation, slim sightlines, and maximum flexibility across a wide range of applications. With concealed fittings, RC3 security, and extensive opening options, it’s a high-performance solution for modern, energy-efficient façades.

View Details

Min. face width	91 mm	Uf value of frame (≥)	1.5 W/(m²·K)
Max. glass/panel thickness	62 mm	Max. vent width	1700 mm
Max. vent height	2500 mm	Max. sound reduction index Rwp	48 dB(A)
Air permeability	Class 4	Watertightness	Class 9A
Burglar resistance	Up to RC3	Wind load resistance	Class C5 / B5
CE marking	Yes	Total basic depth	80 mm
Width of vent frame	80 mm	Max. vent weight	200 kg
Min.-max. vent height	540…2500 mm	Min.-max. vent width	470…1700 mm
Outer frame face width	51 mm	Vent frame face width	40 mm
Max. face width of mullion	250 mm	Min.-max. face width of mullion	76…250 mm
Max. face width of meeting stile	163 mm	Min.-max. face width of meeting stile	148…163 mm
Min.-max. glass/panel thickness	21…62 mm	Barrier-free (≤) 20 mm	Yes
Zero-level threshold	Yes	Area of application	External use, Residential projects, Commercial projects
Shear bond	Yes	Concealed fittings system	Yes
Surface finishes	Powder, Anodised, Paint	Glass composition	Triple glazing
Toplight	Yes	Operating forces	Class 1
Barrier-free operating forces in accordance with DIN 18040	Yes	TipTronic	Yes
Opening type: TipTronic, outward-opening	Projected top-hung	Opening type: TipTronic, inward-opening	Turn/tilt, Side-hung, Bottom-hung, Toplight
Opening type: manual, outward-opening	Side-hung, Projected top-hung, Projected side-hung, Horizontal pivot, Vertical pivot	Opening type: manual, inward-opening	Turn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Horizontal pivot, Vertical pivot, Tilt-before-turn
Opening angle	180 °	Mechanical strength	Class 4
Proof of durability	Class 3	Corrosion protection class for fittings	Class 5
Ug value of glass (≤)	0.5 W/(m²·K)	Drainage levels	3
Integrated sun shading	Yes	Security glazing	Yes
Suitable for safety barrier loading	Yes	Certificates	cradle2cradle SILVER
Colour-independent	Yes

Structural & Architectural Glass

Structural glazing is a term that encompasses many different glazing components. Things like glass curtain walling, sliding doors, glass roofs, glass walls and walk-on-glass.

VISS Fire

A flexible steel fire façade system covering all resistance classes (EI30/60/90), offering large-scale glazing, slim sightlines, and seamless visual integration with standard VISS façades.

View Details

Min. face width	50 mm	Min.-max. glass/panel thickness	5…70 mm
Max. weight	1800 kg	Fire protection	F30, F90, G30, EI30, EI60, EI90, EW30, E30, EW60, G60
Basic protection against vandalism	No	Suitable for safety barrier loading	Yes
Air permeability	AE	Watertightness	RE 1200
Wind load resistance	2.0/3.0 [kN/m²]	Max. sound reduction index Rwp	47 dB(A)
Max. glass/panel thickness	70 mm	Area of application	Internal use, External use, Commercial projects, Façades, Healthcare, Education
Use	Façade, Fixed glazing	Impact resistance	Class 5
Uf value of frame (≥)	1.4 W/(m²·K)	Security system	Yes
Certificates	EPD	CE marking	Yes
Standards	DIN 4102, EN 13501-2, DIN EN 13830

VISS Fire EI30

Designed for EI30 performance, this steel façade system combines security and aesthetics with slim profiles, large glazing formats, and tested compatibility with RC2/RC3 burglar resistance.

View Details

Min. face width	50 mm	Min.-max. glass/panel thickness	15…70 mm
Max. weight	1800 kg	Fire protection	EI30
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Air permeability	AE	Watertightness	RE 1200
Wind load resistance	2.0/3.0 [kN/m²]	Max. glass/panel thickness	70 mm
Max. glass size (w x h)	2300 x 4600 mm	Area of application	External use, Commercial projects, Façades, Healthcare, Education
Use	Façade, Fixed glazing	Special applications	Floor plan, angled glazing
Impact resistance	Class 5	Uw value of window (≥)	0.96 W/(m²·K)
Security system	Yes	Certificates	EPD
CE marking	Yes	Standards	EN 13501-2, DIN EN 13830

VISS roof glazing

A steel roof system that enables expansive glass designs across various roof forms, combining excellent thermal performance with minimalist detailing and robust weather resistance.

View Details

Uf value of frame (≥)	0.64 W/(m²·K)	Min. face width	50 mm
Max. glass/panel thickness	70 mm	Max. weight	1800 kg
Surface finishes	Stainless steel, Powder, Paint	Air permeability	AE 750
Watertightness	RE 1200	Min. basic depth of mullion	25 mm
Max. basic depth of mullion	280 mm	Min.-max. basic depth of mullion	25…280 mm
Max. face width	60 mm	Min.-max. face width	50…60 mm
Min. glass/panel thickness	16 mm	Min.-max. glass/panel thickness	16…70 mm
Max. glass/infill weight	1800 kg	Installation angle	0-75 °
Skylight construction, min. vert. incline	10 °	Skylight construction, max. vert. incline	75 °
Skylight construction, min.-max. vert. incline	10…75 °	Skylight construction	Yes
Drainage	Yes	Drainage levels	3
Wind load resistance	2.0 [kN/m²]	Sun shading attachment	Yes
Certificates	EPD	CE marking	No
Passive house compliant	Yes	Passive house class	phA
Recyclable	Yes	Standards	EN ISO 10077
Building authority approval	Yes	Colour-independent	Yes
