Aluminium Curtain Walling

High-Performance Curtain Walling & Façade Systems

Architecturally striking and engineered for performance, our curtain walling and façade solutions provide outstanding thermal insulation, structural integrity, and design flexibility. Ideal for commercial buildings requiring maximum transparency and efficiency.

SÄLZER series S1es aluminium facade

The S1es aluminium façade system delivers invisible high security with a sleek architectural finish. Certified against forced entry, bullets, and blast pressure, it offers flexible integration with windows, doors, and insert units — all while maintaining a uniform and modern façade design.

Schüco Façade System FWS 35 PD

A Panorama Design curtain wall system featuring ultra-slim profiles and frameless glass corners for maximum transparency and uninterrupted views — ideal for high-end residential and commercial buildings.

View Details

Uf value of frame (≥)	1.4 W/(m²·K)	Min. face width	35 mm
Min.-max. system basic depth	65…150 mm	Max. glass/panel thickness	50 mm
Max. weight	400 kg	Surface finishes	Powder, Anodised, Paint
Air permeability	AE	Max. sound reduction index Rwp	51 dB(A)
Watertightness	RE 1200	Impact resistance	I5/E5
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Min. system basic depth	65 mm	Max. system basic depth	150 mm
Min. basic depth of mullion	65 mm	Max. basic depth of mullion	125 mm
Min.-max. basic depth of mullion	65…125 mm	Max. unit weight	400 kg
Min.-max. face width	35 mm	Face width of pressure plate / cover cap profile	35 mm
Face width, outside	35 mm	Face width, inside	35 mm
Face width of mullion	35 mm	Face width of frame	35 mm
Face width of transom	35 mm	Min. glass/panel thickness	4 mm
Min.-max. glass/panel thickness	4…50 mm	Max. glass/infill weight	400 kg
Installation angle	85-105 °	Polygon façade angle	90 °
Drainage	Yes	Drainage levels	3
Earthquake protection	Yes	Wind load resistance	2.0/3.0 [kN/m²]
Sun shading attachment	Yes	Spandrel safety barriers	Surface-mounted, Façade-mounted
Blast resistance	No	Certificates	Passive house certificate
CE marking	Yes	Passive house compliant	Yes
Passive house class	phA	Recyclable	Yes
Standards	DIN EN 1627, EN ISO 10077, DIN EN 13830, General building authority approval	CWCT certified	Yes
Building authority approval	Yes	European Technical Assessment	Yes
Tested all-glass corner	Yes

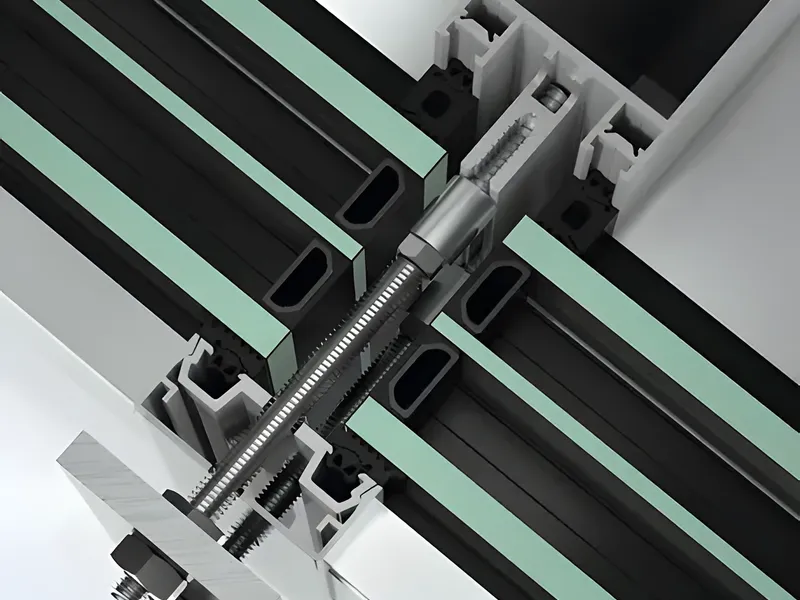

Schüco Façade System FWS 50

A versatile 50 mm curtain wall system offering thermal performance, integrated safety barriers, and seamless integration with Schüco windows and doors — perfect for commercial façades and skylights.

View Details

Uf value of frame (≥)	1.5 W/(m²·K)	Min. face width	50 mm
Min.-max. system basic depth	6…255 mm	Max. glass/panel thickness	62 mm
Max. weight	1080 kg	Surface finishes	Powder, Anodised, Paint
Air permeability	AE	Max. sound reduction index Rwp	48 dB(A)
Watertightness	RE 1200	Impact resistance	I5/E5
Burglar resistance	Up to RC3	Suitable for safety barrier loading	Yes
Bullet resistance	Up to FB 4	Min. system basic depth	6 mm
Max. system basic depth	255 mm	Min. basic depth of mullion	50 mm
Max. basic depth of mullion	250 mm	Min.-max. basic depth of mullion	50…250 mm
Max. unit weight	1080 kg	Min.-max. face width	50 mm
Face width of pressure plate / cover cap profile	50 mm	Face width, outside	50 mm
Face width, inside	50 mm	Face width of mullion	50 mm
Face width of frame	50 mm	Face width of transom	50 mm
Min. glass/panel thickness	4 mm	Min.-max. glass/panel thickness	4…62 mm
Max. glass/infill weight	1080 kg	Installation angle	1-105 °
Polygon façade angle	45 °	Skylight construction, min. vert. incline	2 °
Skylight construction, max. vert. incline	90 °	Skylight construction, min.-max. vert. incline	2…90 °
Skylight construction	Yes	Drainage	Yes
Drainage levels	3	DIN EN 62561 lightning protection	Yes
Earthquake protection	Yes	Wind load resistance	2.0/3.0 [kN/m²]
Sun shading attachment	Yes	Integrated sun shading	Yes
Spandrel safety barriers	Integrated, Surface-mounted, Façade-mounted	Profile-integrated spandrel safety barrier	Yes
Blast resistance	No	CE marking	Yes
Passive house compliant	Yes	Passive house class	phA
Recyclable	Yes	Standards	DIN EN 1627, EN ISO 10077, DIN EN 13830, General building authority approval
AAMA certified	Yes	CWCT certified	Yes
Building authority approval	Yes	European Technical Assessment	Yes
